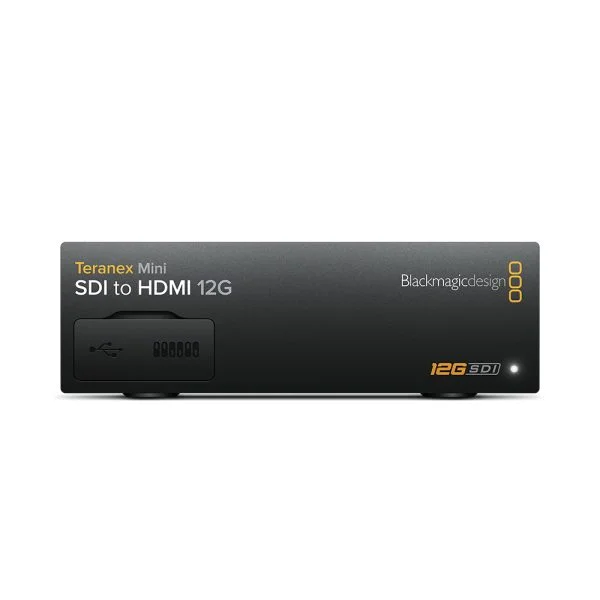

Blackmagic Design Teranex Mini 12G-SDI to HDMI Converter

SDI to HDMI Conversion with Expanded Audio Features

The Teranex Mini 12G-SDI to HDMI Converter from Blackmagic Design offers production-grade conversion that’s great for turning consumer HDMI gear into professional monitoring equipment (and more!). The Teranex offers a selection of SDI connections including a 12G-SDI loop and HDMI output. The converter is lightweight and easy to transport with two power options: plug it into an outlet via AC or use 48V DC power over Ethernet. Sweetwater production pros also love the Terenex’s handy audio features. The box can de-embed audio and send it through dual XLR outputs in balanced analog, AES, or EBU formats. The right XLR channel even offers timecode support — a very useful feature for multi-cam productions. Finally, the Terenex is ready for Mac or PC operating systems, and software can be updated down the line via USB or Ethernet.

Blackmagic Design Teranex Mini 12G-SDI to HDMI Converter Features:

• Video I/O: SDI input, SDI output, 12G-SDI loop output, and 1 HDMI 2.0 connector (with 2160p60 support)
• Audio I/O: 2 balanced analog XLR outputs with timecode configuration option for right XLR channel
• Automatic detection switching between SD, HD, 2K, and 4K
• De-embed audio to balanced analog or AES/EBU formats (up to 4 channels)
• SDI re-clocking support
• Powered via AC (IEC power cable required) or 48V DC PoE (power over Ethernet)
• Includes SD card loaded with Windows and Mac software and 3-year limited manufacturer’s warranty
• Optional front-panel control with LCD, rotary knob and 6 settings buttons
• Support for future software updates via USB or Ethernet
