Great for: Audio for Video, Education, Theater / Production, House of Worship, Portable Audio, Live Sound





Features / Specs
- Advanced digital wireless technology that delivers crystal-clear audio for vocal performances and multi-performer presentations
- Operates in the license-free 1.9 GHz frequency band to avoid interference from TV broadcasts, WiFi and Bluetooth
- Sheersound™ audio codec offers unprecedented low latency and superior quality for an exceptional audio experience
- Quick and easy setup with auto-scan and wireless pairing

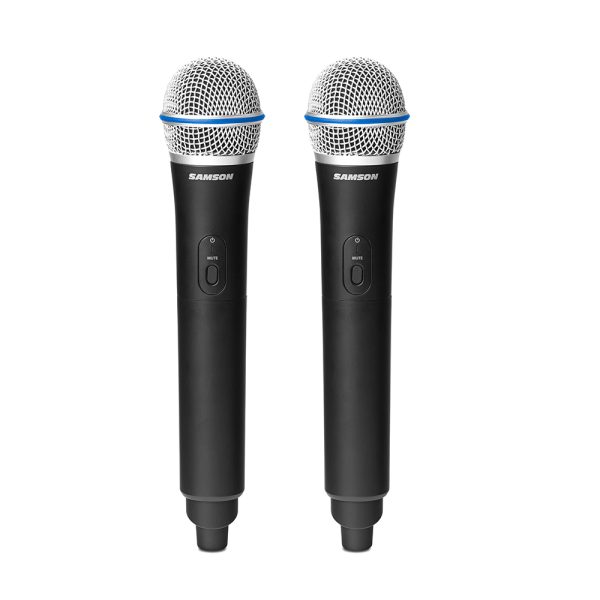

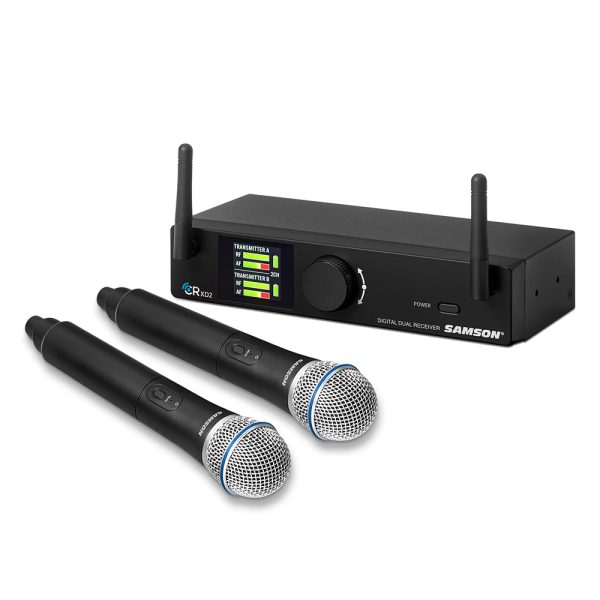

- Includes two handheld transmitters with Samson Q8 dynamic vocal microphones
- Concert XD2 transmitters provide up to 8 hours of operation on two AA batteries

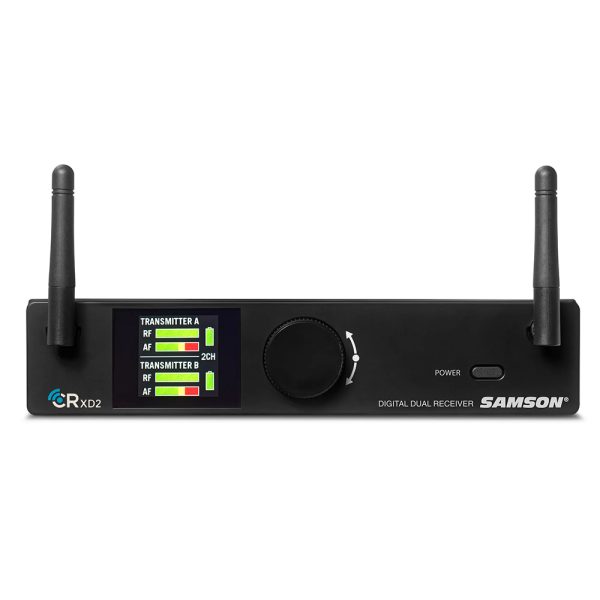

- Half-rack receiver provides individual outputs and a mixed output for versatile routing in a variety settings
- Included rackmount kit provides added convenience for easy integration
System / Working Range | 300' (100m) line of sight |
---|---|
System / RF Frequency Range | US: 1921.536~1928.448 MHz EU: 1881.792~1897.344 MHz JP: 1895.616-1904.256 MHz |
System / Audio Sampling Rate | 48 kHz |
System / Audio Frequency Response | ±1 dB from 20 Hz – 21 kHz |
System / System Latency | 7.7 ms |
CHXD2 Transmitter / Microphone Element | Q8 Dynamic |
CHXD2 Transmitter / Audio THD | -74 dB (0.02%) |
CHXD2 Transmitter / RF Power | 20 dBm (FCC) 23 dBm (RED) |
CHXD2 Transmitter / Power | Two AA batteries NiMH or Alkaline |
CHXD2 Transmitter / Battery Life | Up to 8 hours |
CHXD2 Transmitter / Dimensions (HxØ) | 10.23” x 2.1” / 260 mm x 54 mm |
CHXD2 Transmitter / Weight | 0.60 lb / 274 g |

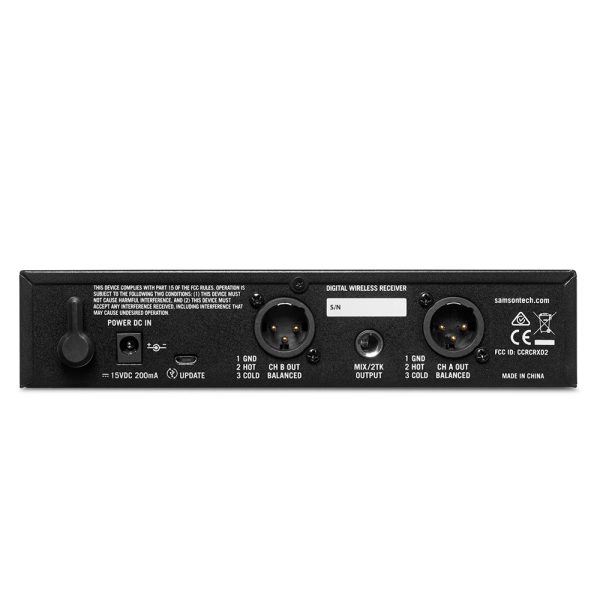

CRXD2 Receiver / Audio Output Level 1/4” (6.3mm) | +12dBu |
CRXD2 Receiver / Audio Output Level XLR | +9dBu |
CRXD2 Receiver / Audio Output Impedance XLR | 317 Ω |
CRXD2 Receiver / Dimensions (LxWxH) | 7.79 ” x 3.38” x 1.69” / 198 mm x 86 mm x 4 3mm |
CRXD2 Receiver / Weight | 1.12 lb / 509.5 g |
