The Samson EarAmp EWM100 is a wireless stereo in-ear monitor system that gives you the freedom to move and perform on stage without sacrificing audio quality. Its easy-to-use setup and customizable mixes allow musicians, theatrical performers, presenters and broadcasters to hear the perfect blend of their performance clearly and accurately.
Features / Specs:
Professional-quality wireless in-ear monitoring system
Reliable UHF transmission with over 300′ (90 m) line-of-sight range
Receiver offers stereo and mono modes for added flexibility and custom mixes
Up to 6 hours continuous use from 2 x AA batteries
Multiple receivers can be used with a single transmitter for larger group settings
Advanced features include a high EQ shelf, limiter control, and custom naming options
Half-Rack Stereo Transmitter with Rack Mount Kit, Features XLR-1/4″ Inputs and 1/4″ Loop Outputs

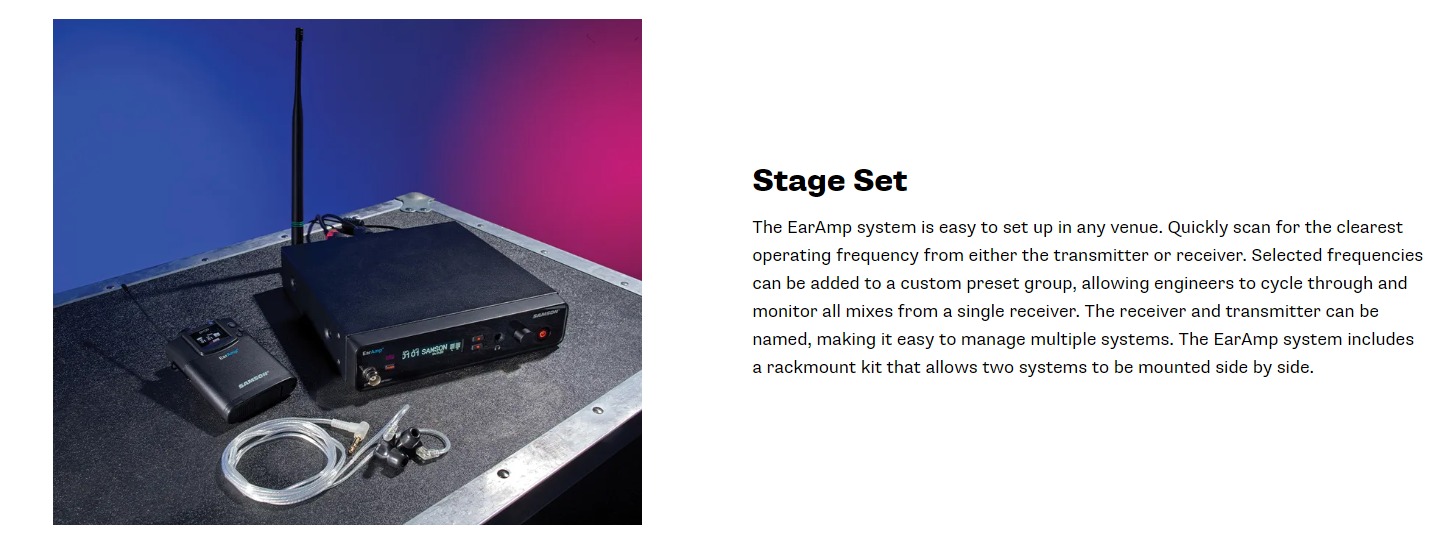

One touch scan function quickly locates the clearest operating frequency for ease of setup and use

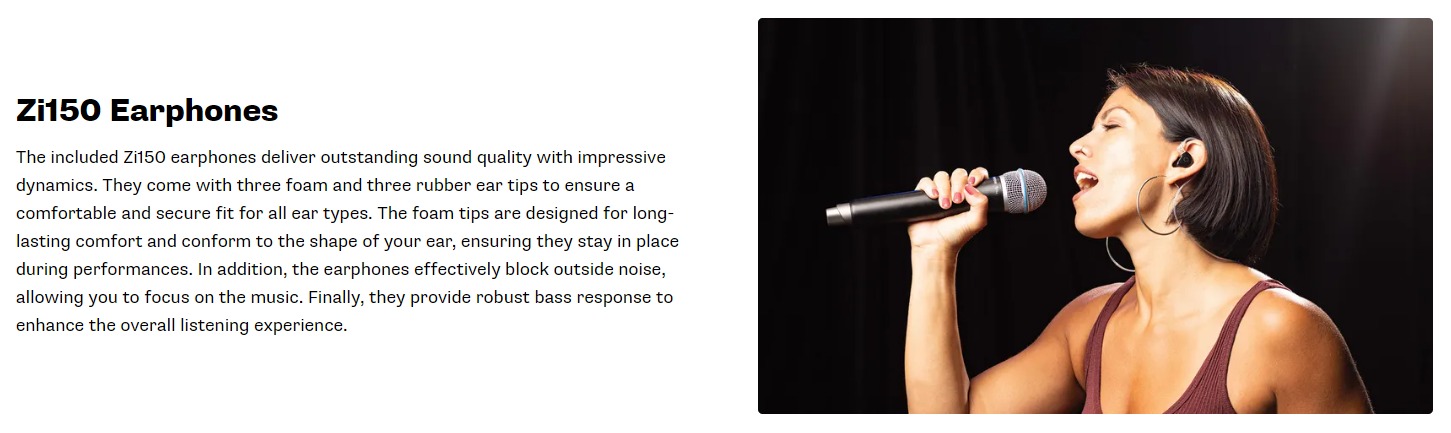

Includes Zi150 earphones for discreet use while providing isolation and high performance sound\
System: RF Frequency Range
470 MHz – 502 MHz
System: Tuning Bandwidth
32 MHz
System: Operating Range
300' (90 m) Environment Dependent
System: Audio Frequency Response
25 Hz – 15 kHz ±3 dB
System: Signal-to Noise Ratio
>100 dB
System: Total Harmonic Distortion
<0.9% @ 1 kHz

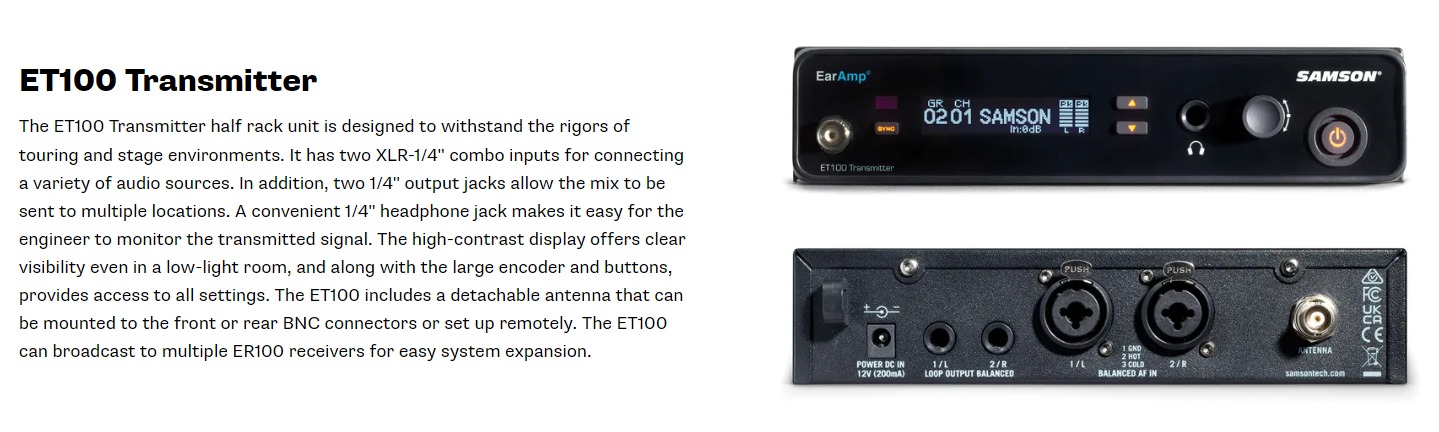

ET100 Transmitter: Audio Inputs
(2) XLR-1/4"
ET100 Transmitter: Audio Outputs
(2) 1/4" connected directly to the inputs
ET100 Transmitter: Antenna Output
(2) BNC sockets
ET100 Transmitter: Monitor Output
1/4" Stereo Headphone
ET100 Transmitter: MPX Pilot Tone
19 kHz
ET100 Transmitter: Power Supply
DC 12 V
ET100 Transmitter: Dimensions (LxWxH)
8.11" x 7.83" x 1.73" / 206 mm x 199 mm x 44 mm
ET100 Transmitter: Weight
2.1 lb / 0.96 kg

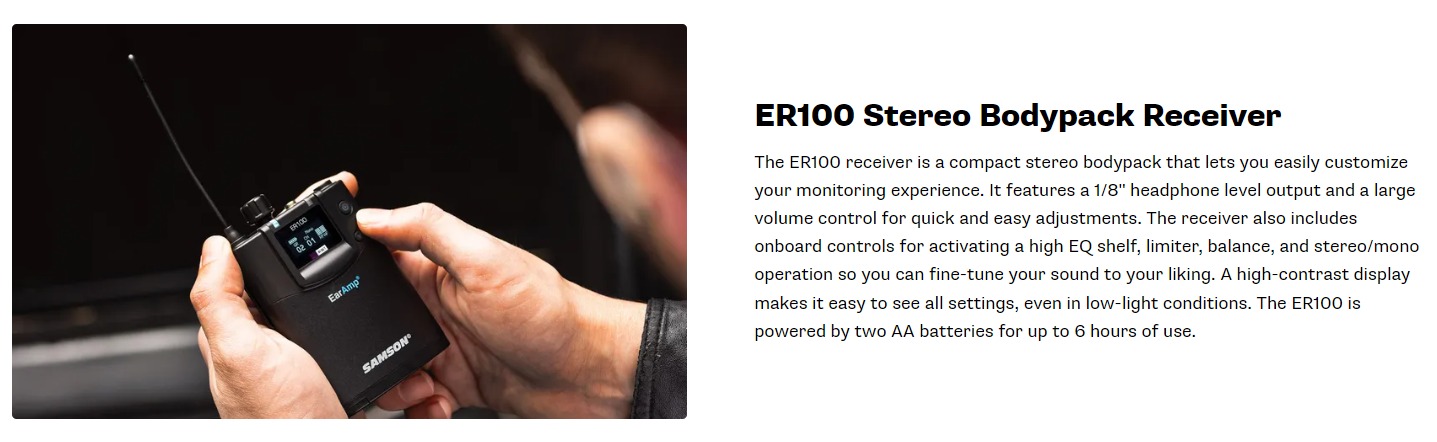

ER100 Receiver: Headphone Output
1/8" / 3.5 mm Stereo
ER100 Receiver: Output Power
2x 150 mW @ 1 kHz (T.H.D. 3%)
ER100 Receiver: Stereo Separation
≥55 dB @ 1 kHz
ER100 Receiver: High Frequency Boost
+8 dB @ 10 kHz
ER100 Receiver: Limiter
0, -6 dB, -12 dB, -18 dB
ER100 Receiver: Power Requirements
2x AA Batteries
ER100 Receiver: Battery Life
Up to 8 hours continuous use
ER100 Receiver: Dimensions (LxWxH)
2.56" x 0.91" x 3.54" / 65 mm x 23 mm x 90 mm
ER100 Receiver: Weight
0.22 lb / 0.1 kg
