Samson LM8x Overview

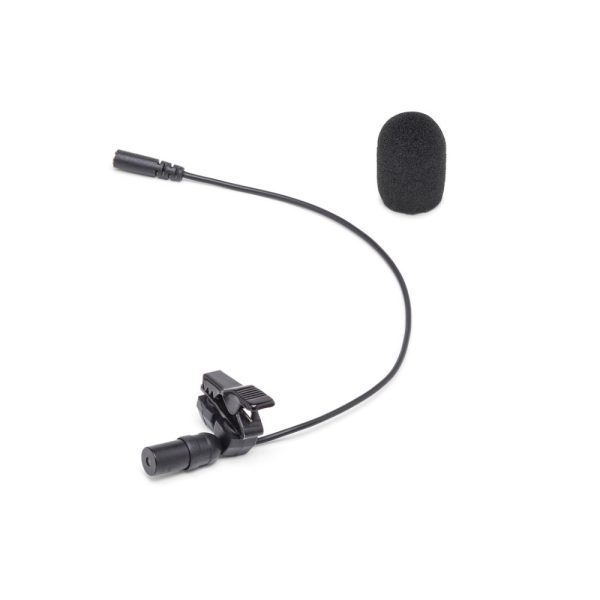

Designed for a wide variety of speech and vocal applications including broadcast and theater production, presentations, ENG, and vlogging, the Samson LM8x Omnidirectional Lavalier Microphone for Wireless Transmitters is a lightweight, low-profile lav mic featuring a 6.59mm miniature condenser capsule that handles sound pressure levels up to 125 dB while providing a 50 Hz to 16 kHz frequency response for clear and accurate vocal reproduction. Its omnidirectional pick-up pattern is ideal for reliably capturing sound from all directions without proximity effect or off-axis coloration.
Built to work with a wide variety of wireless systems, the LM8x includes four detachable 3.9′ adapter cables with the following connectors: 3.5mm, Hirose 4-pin, Switchcraft TA3F, and Switchcraft TA4F. Also included are four standard windscreens, a “cat fur” windscreen, a mic clip, and a carry case.
- Lavalier microphone with 6.59mm miniature condenser capsule
- Lightweight, low-profile design
- Ideal for broadcast vocal applications, presentations, houses of worship, theaters, ENG, and more
- Omnidirectional pickup pattern captures audio from all directions while preventing proximity effect and off-axis coloration
- 50 Hz to 16 kHz frequency response
- 125 dB maximum SPL
- Includes four detachable 3.9′ adapter cables—3.5mm, Hirose 4-pin, Switchcraft TA3F, and Switchcraft TA4F—for compatibility with most popular wireless transmitters
- Four standard windscreens, “cat fur” windscreen, mic clip, and protective carry case also included
Sound Field | Mono |
---|---|
Operating Principle | Pressure Operated |
Capsule | Electret Condenser |
Diaphragm | 0.26" / 6.59 mm |
Polar Pattern | Omnidirectional |
Frequency Range | 50 Hz to 16 kHz |
Maximum SPL | 125 dB SPL |
Impedance | 2.2 Kilohms ± 30% |
Sensitivity | -45 dBV/Pa at 1 kHz |
Output | Proprietary |
Cable Length | 3.94' / 1.2 m |
Operating Voltage | 1.5 to 12 V |
Weight | 0.07 oz / 2 g |
Package Weight | 0.45 lb |
Box Dimensions (LxWxH) | 2 x 2 x 1.5" |
